| ब्रांड नाम: | CHG |
| मॉडल संख्या: | CB-PC-04 |
| एमओक्यू: | 1 set |
| कीमत: | बातचीत योग्य |
| भुगतान की शर्तें: | L/C, D/P, T/T, Western Union, MoneyGram |
| आपूर्ति करने की क्षमता: | 1000 sets per year |

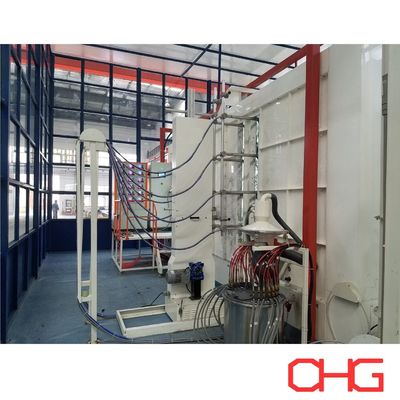

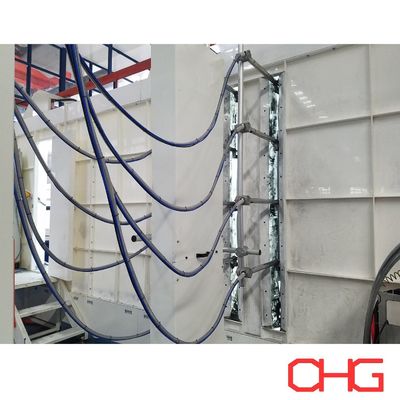

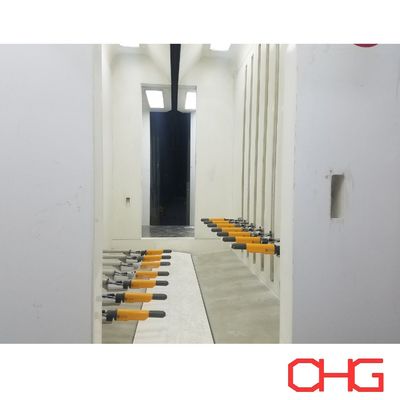

Automatic Electrostatic Powder Coating Spray Gun
Key Features:
1. Complete System Configuration
Automatic electrostatic spray gun
High-voltage controller unit
Powder suction pump
Electrically insulated transfer piping
2. High-Efficiency Electrostatic Application
Built-in high-voltage generator (60-100kV)
Optimized electrostatic field distribution
Leakage-proof electrical system
3. Advanced Spray Technology
Triple-airflow technology ensures:
• Uniform powder distribution (±5%)
• Continuous nozzle cleaning
• Consistent spray fan pattern
4. Reliable Powder Delivery System
Fluidized bed powder hopper prevents:
• Material bridging
• Flow interruptions
Dual-airflow pump provides:
• Stable powder transport (1-5kg/min)
• Even feed to spray gun
Technical Specifications:
Voltage range: 60-100kV
Powder output: 1-5kg/min
Air consumption: 3-6 CFM
Coating uniformity: ±5%
| No. | Item | Parameter |
| 1 | Voltage input | ~220V 50~60 Hz |
| 2 | Voltage output of static generator | DC24V |
| 3 | Voltage output of powder spraying gun | 0-100kV continuously tunable |
| 4 | Current output | ≤100μA |
| 5 | Polarity | negative |
| 6 | Spraying gun weight | 500g |
| 7 | Powder output | 0-400g tunable |
| 8 | Compressed air consumption | Max0.25Nm3/min |
| 9 | Powder bucket volume | 25kg |
| 10 | Pipeline length | By actual demand |
| 11 | Protection degree | IP54 |
